Qualitative Analysis: Example1

Example: Consider the following predator-prey system

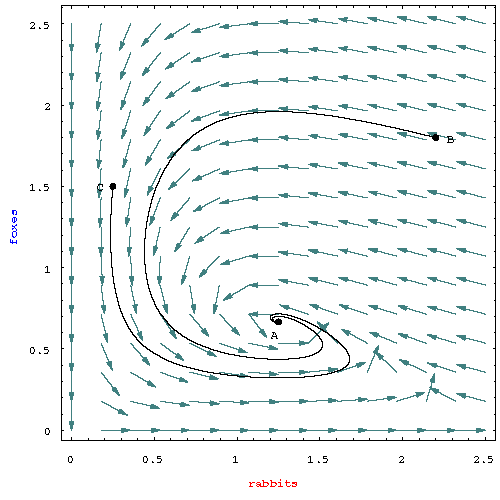

The solution curves in the phase plane is as follows:

1

Sketch the R(t)- and F(t)- graphs for the solutions with initial points A, B, and C.

2

Find the longterm behavior of the populations over time.

Solution:

Next Example:
